One Formula, Two Jobs: How RoPE and Timestep Embedding Are Built

RoPE belongs to the Transformer world and timestep embedding belongs to the Diffusion world, yet a DiT block uses both — and if you open the two implementations side by side, you will find the same frequency table. Both are the same three-step pipeline:

• $x$ is a scalar coordinate: a token position $p$ for RoPE, a diffusion time $t$ for timestep embedding.
• $\omega_i$ is the angular frequency of the $i$-th two-dimensional group, and there are $m$ of them.
• $\theta_i$ is that group’s phase at the current coordinate.

The single scalar $x$ feeds all $m$ groups at once — Section 2 explains why.

The real difference is not in the frequencies. It is in what happens to the sine and cosine at the end:

• RoPE uses the phase to rotate the existing query and key.
• Timestep embedding uses the sine and cosine directly as a conditioning feature.

1. Angular Frequency, Phase, and Period

A point on the unit circle is $(\cos\theta, \sin\theta)$, where $\theta$ is the phase — how far around the circle we have turned. Phase is measured in radians, one full turn being $2\pi$ of them:

torch.cos and torch.sin take radians, not degrees; every number below is in radians unless marked $^\circ$.

Four quantities describe the same rotation, and mixing them up is the most common confusion here:

The trap is the middle two rows: $\omega = 1$ does not mean “one turn per step”, it means one radian per step. Following that value across:

$\omega = 1$ is not an arbitrary example. The classic ladder is $\omega_i = B^{-i/m}$ (Section 3), so group 0 always lands on $\omega_0 = B^0 = 1$ — regardless of base, max_period, or the dimension:

The fastest group of every classic RoPE and timestep embedding advances exactly $57.2958^\circ$ per step and needs $2\pi \approx 6.283$ steps per revolution. No hyperparameter changes this — base pivots the ladder around this fixed point rather than shifting it (Section 6); only rescaling the coordinate, $x \to sx$, moves it.

2. Why More Than One Frequency?

A single frequency gives an encoding that repeats exactly:

One frequency alone cannot resolve neighbouring positions and stay unambiguous over long ranges, so both constructions use a whole bank of them, ordered descending — the opposite of what the indexing suggests:

Group 0 is the fastest, group $m-1$ the slowest. Low-index groups resolve adjacent positions but wrap constantly, so they cannot say which revolution you are on; high-index groups are nearly flat between neighbours but never wrap over the range of interest, so they fix the coarse location. Neither works alone — the combination is what forms a multi-scale code.

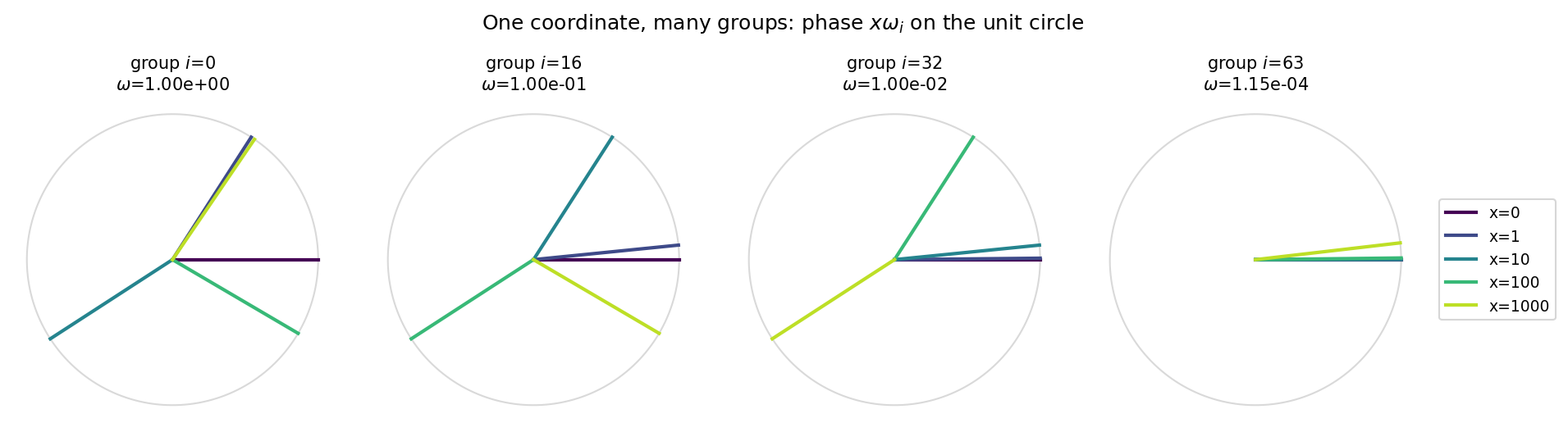

Fig. 1: The same coordinate $x$ seen by four groups (dim=128, base=10000), fastest on the left. Group 0 has already aliased badly by $x=10$ — its $x=1$ and $x=1000$ arrows land 0.03 rad apart purely by coincidence. Group 63, the slowest, has barely left the origin even at $x=1000$.

3. The Classic Frequency Ladder

Classic RoPE and most timestep embeddings use the same geometric ladder:

where $d$ is the encoding dimension (or the rotary dimension), each pair of channels forms one 2D group, and $B$ is typically $10000$. The two exponent forms are identical because $\frac{2i}{d} = \frac{i}{d/2}$. The periods are $T_i = 2\pi B^{i/m}$.

The minus sign in the exponent is what makes this a descending ladder: with $B > 1$, growing $i$ drives $B^{-i/m}$ down, so $\omega_i$ shrinks and $T_i$ grows. Group 0 sits at the top with $\omega_0 = B^0 = 1$, the largest angular frequency and the shortest period — and as noted in Section 1, that top rung is fixed at $1$ for any $B$ and any $d$. Only the rungs below it move.

For the canonical dim = 128, base = 10000 we get $m = 64$ groups with $\omega_i = 10000^{-i/64}$, and consecutive frequencies have a fixed ratio

so each step down the ladder loses about 13% of the previous frequency — a geometric sequence, evenly spaced in log frequency, not a linear ramp.

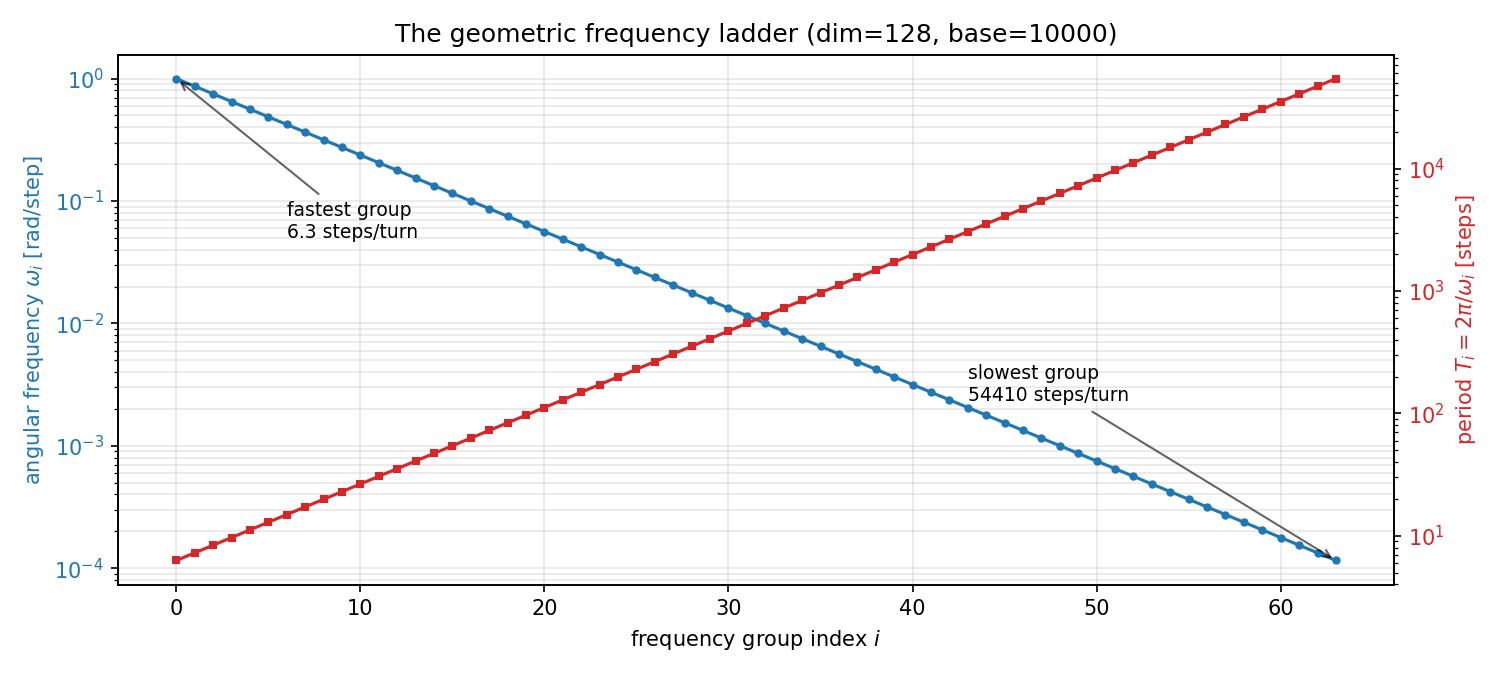

Fig. 2: As $i$ grows, $\omega_i$ falls (blue) from $1$ to $1.15\times10^{-4}$ rad/step while the period $T_i$ rises (red) from ~6 steps to ~54k. Low index = fast = short period. A straight line on a log axis is exactly what “geometric sequence” means.

A frequent misreading:

Each position does not get its own angular frequency. All positions share the same 64 frequencies. What the position changes is the phase, $\theta_i(p) = p\omega_i$.

4. RoPE: Position → Phase → Rotation

RoPE does not produce a position vector to add onto the token embedding. It rotates query and key. Split the rotary dimensions into 2D groups $(x_0,x_1), (x_2,x_3), \ldots$, give group $i$ the frequency $\omega_i$, and rotate by $\theta_i(p) = p\omega_i$:

Why this expresses relative position. Put query vector $\mathbf{q}_i$ at position $p$ and key vector $\mathbf{k}_i$ at position $n$. Their per-group dot product is

using $R(a)^{\top}R(b) = R(b-a)$. The absolute positions cancel and only $n - p$ survives:

Absolute position determines the rotation; only relative position survives in the attention score.

Pairs at equal distance — $(0,1)$, $(10,11)$, $(100,101)$ — get identical relative rotation in every group. But the absolute encoding never exactly repeats. A single group would need $\Delta p = kT_i$, and group 0 has $\omega_0 = 1$, requiring $\Delta p = 2\pi k$, never an integer. Requiring all 64 groups to wrap simultaneously is stricter still.

What actually changes from position 0 to position 1? At $p = 0$ every phase is zero, so every $R(0) = I$ — position 0 is the un-rotated token. At $p = 1$ the phase of group $i$ is exactly $\omega_i$, so the step $0 \to 1$ is not “one rotation”: group 0 turns $57.2958°$, group 16 turns $5.7296°$, group 32 turns $0.5730°$, group 63 turns $0.006616°$.

Moving one position rotates 64 different 2D planes by 64 different angles.

For an arbitrary gap, $\Delta\theta_i = \Delta p \cdot \omega_i$. Group 32 across a 100-token gap gives $1$ rad $\approx 57.3°$ — the same rotation group 0 gets from a single step. That spread is the multi-scale property in one number.

5. Timestep Embedding: Time → Phase → Feature Vector

The standard implementation:

def get_timestep_embedding(
    timesteps: Tensor, embedding_dim: int, max_period: float = 10000.0
) -> Tensor:
    """Sinusoidal timestep embedding in ``[cos, sin]`` order, in float32.

    Equivalent to diffusers ``get_timestep_embedding`` with
    ``flip_sin_to_cos=True`` and ``downscale_freq_shift=0`` — the combination
    every modern DiT uses, though not the library's defaults.
    """
    half_dim = embedding_dim // 2

    # exponent_i = -log(B) * i   ->   omega_i = exp(-log(B) * i / m) = B^(-i/m)
    exponent = -math.log(max_period) * torch.arange(
        half_dim, dtype=torch.float32, device=timesteps.device
    )
    phase = timesteps[:, None].float() * torch.exp(exponent / half_dim)[None, :]

    return torch.cat([torch.cos(phase), torch.sin(phase)], dim=-1)

The frequency line is exactly $\omega_i = B^{-i/m}$ — the same ladder as Section 3. Timestep embeddings are normally 256-dim (HunyuanVideo, Qwen-Image, Sana, AuraFlow all hard-code it), giving $m = 128$ groups against RoPE’s 64 on a 128-dim head. Same range, sampled twice as densely: the even groups of the 256-dim table are bit-for-bit the 64 frequencies of classic RoPE, since $\omega_{2i}^{(256)} = B^{-2i/128} = B^{-i/64} = \omega_i^{(128)}$. What differs is the last line — instead of rotating anything, the phases are emitted directly.

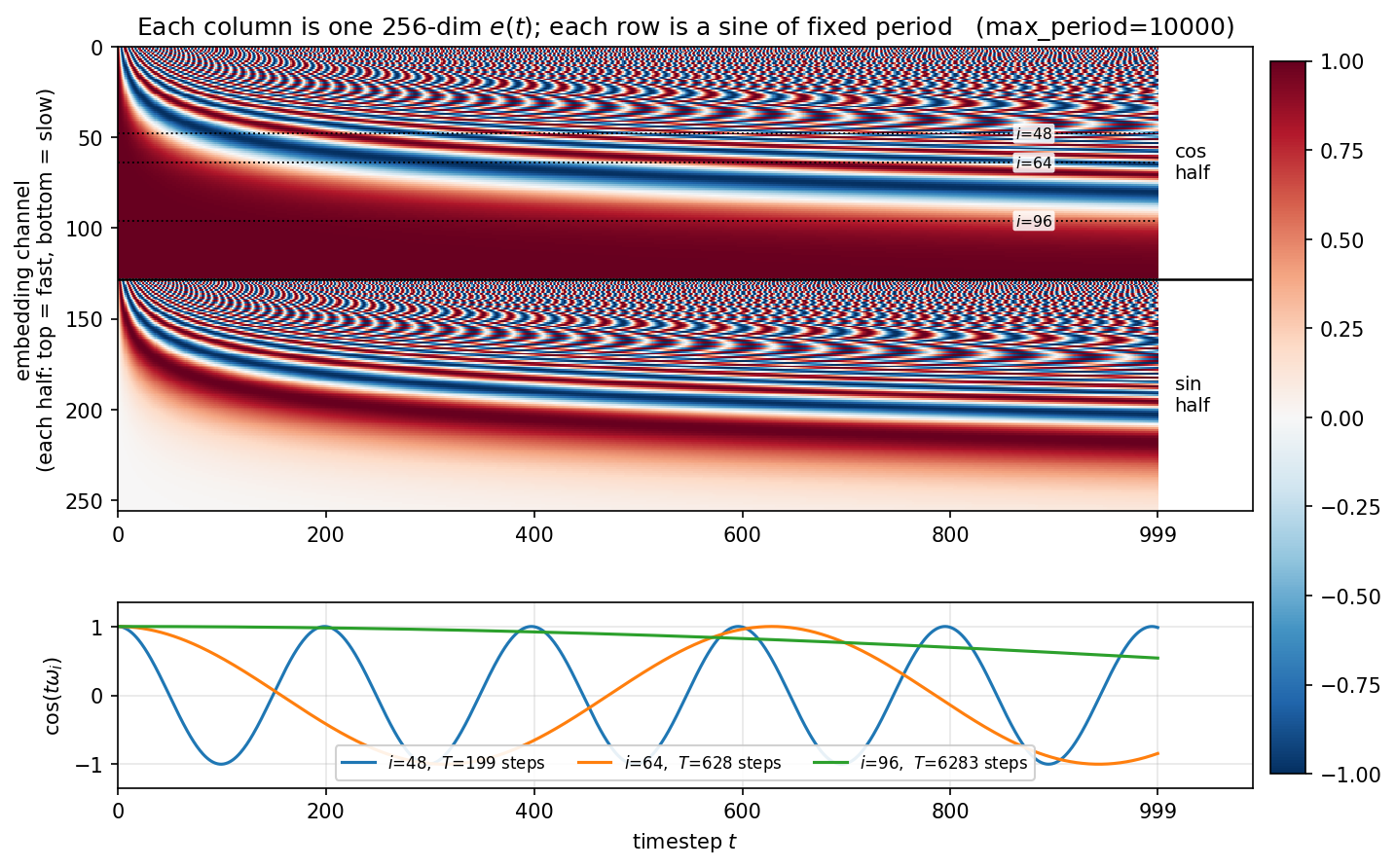

Fig. 3: Top — every column is one 256-dim $e(t)$; rows $0$–$127$ are the cosines and $128$–$255$ the sines, so reading either half downwards walks the ladder from fast to slow. Note what is fixed and what varies: each row is a sine of one fixed period, and moving right along it only advances that row’s phase — going down is what changes the period, from 6.3 steps at the top to 58470 at the bottom. The woven texture is a beat between neighbouring rows whose periods differ by 7.5%, not structure inside any single channel, and the solid red and white bands closing each half are the slow rows, still frozen at $\cos 0 = 1$ and $\sin 0 = 0$ after 0.107 rad of total travel. Bottom — the three dotted rows drawn as waveforms: even at $i = 48$ only five periods fit in the entire schedule, and by $i = 96$ barely a sixth of one.

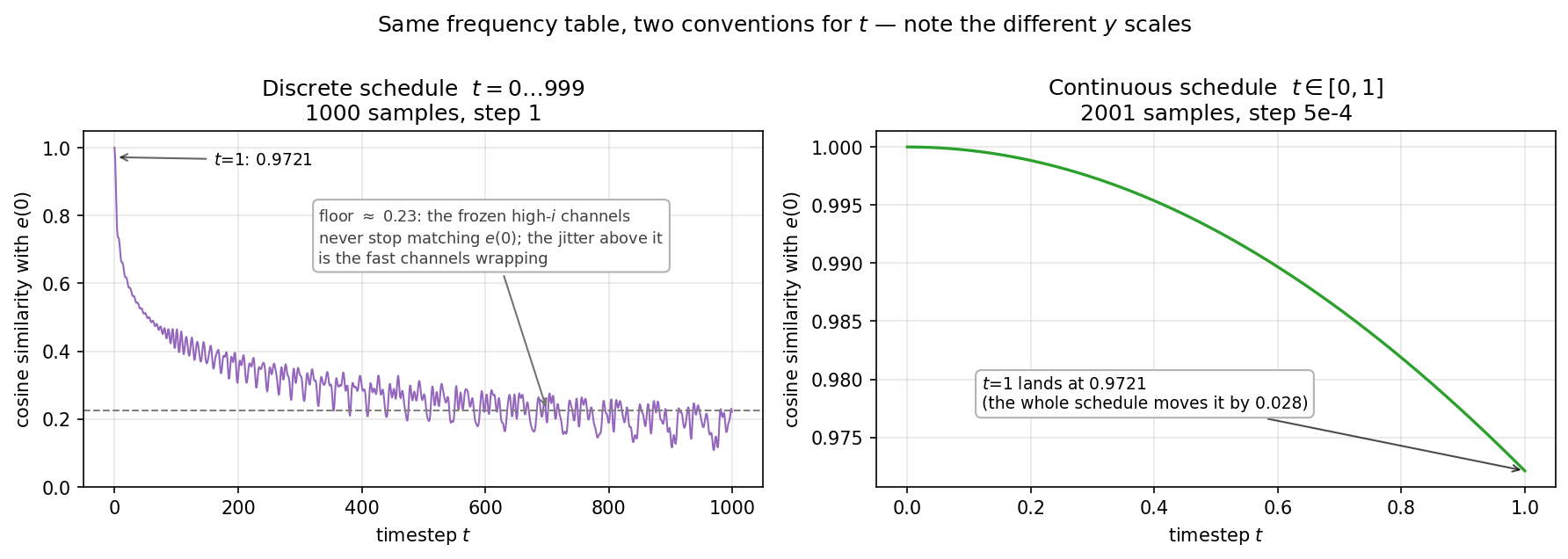

Fig. 4: Cosine similarity with $e(0)$ — same frequency table, two conventions for $t$. Left: the discrete schedule falls to a floor near $0.22$, held up by the frozen high-$i$ channels. Right: $t \in [0,1]$ moves the embedding by only $0.030$ in total (note the $y$ range), because the fastest group gains $1$ rad instead of $999$. Same table, 1000× less phase.

Timestep 0 vs timestep 1. At $t = 0$ all phases vanish, so $e(0) = [1,\ldots,1,\ 0,\ldots,0]$. At $t=1$ group $i$ sits at phase $\omega_i$ — the same increment as RoPE’s $p{=}0 \to p{=}1$. Write $v_i(t) = \big(\cos(t\omega_i),\ \sin(t\omega_i)\big)$ for the 2D vector group $i$ contributes, i.e. its point on the circle in Fig. 1. Starting from $v_i(0) = (1,0)$, it travels

so movement falls with $i$: group 0 swings $0.9589$, group 64 moves $0.0100$, group 127 only $0.000107$.

Two properties of the assembled vector follow. The norm is constant: each group contributes $\cos^2 + \sin^2 = 1$, so $\lVert e(t) \rVert = \sqrt{128} \approx 11.31$ for every $t$. All embeddings live on one sphere and $t$ merely slides the point across it, so the information is entirely in the direction — hence cosine similarity is the right comparison, and the downstream MLP sees a stable input scale at every $t$.

Adjacent timesteps are nearly identical: $\lVert e(1) - e(0) \rVert \approx 2.6712$ and $\cos\text{-sim} \approx 0.9721$ state the same fact, since a fixed norm makes each determine the other. For scale, the furthest any timestep gets from $e(0)$ is $15.10$ (at $t = 970$) — one step covers just 18% of the schedule’s full span. A few fast channels move a lot, most barely move, and the result is the smooth conditioning signal you want.

6. What base / max_period Really Control

RoPE calls it base, timestep embedding calls it max_period. Same role: $\omega_i = B^{-i/m}$, so $T_i = 2\pi B^{i/m}$.

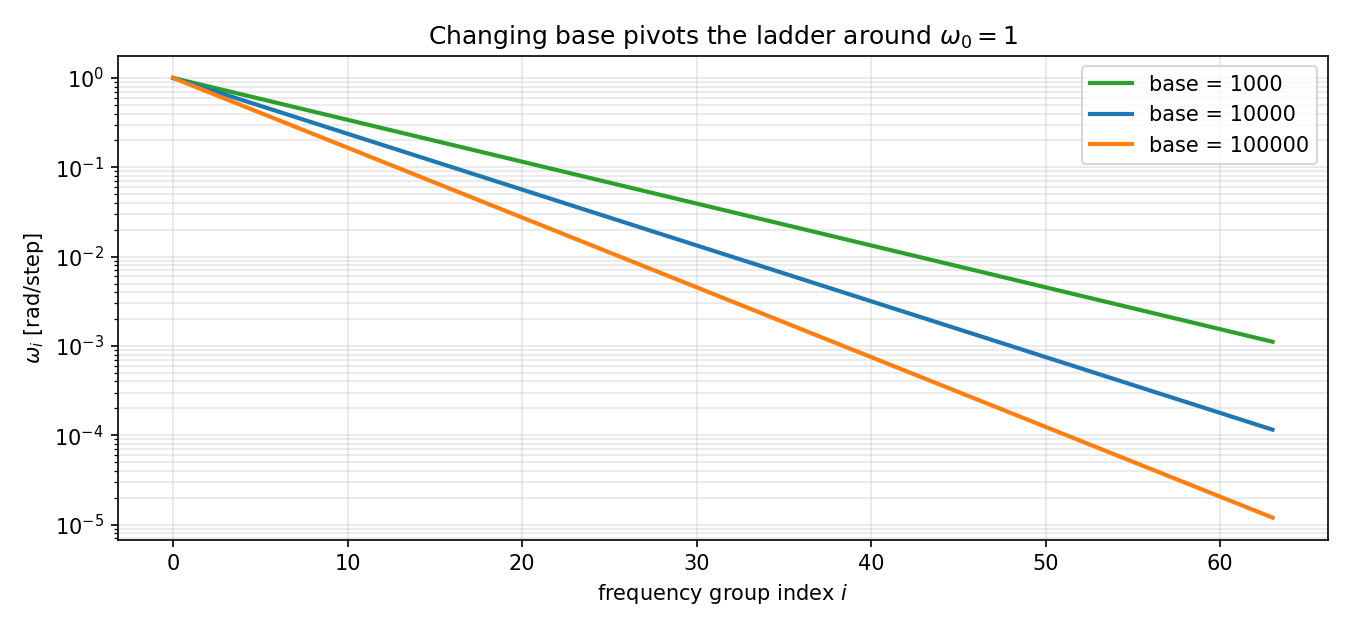

Fig. 5: Changing base does not shift the ladder — it pivots it. Group 0 is pinned at $\omega_0 = B^0 = 1$ regardless of $B$; the effect grows monotonically with $i$ and is largest at the high-index (slowest) end.

Raising $B$ lowers every $\omega_i$ with $i > 0$: longer periods, less phase per unit distance. Lowering it does the reverse, buying local resolution at the cost of the slow features that carry long-range trend.

This is a different knob from embedding_dim, and the log axis of Fig. 2 makes the difference sharp — the ladder is a straight line there:

base rotates that line about its pinned left end $\omega_0 = 1$; embedding_dim only sets how many points are marked along it.

Doubling the width leaves the line exactly where it was, which is why the 256-dim table merely interleaves one new frequency between each neighbouring pair of the 128-dim one.

Three consequences that trip people up:

max_period = 10000 is not a period of 10000. The name comes from confusing $\omega$ with $f$ — the trap from Section 1. Under DDPM’s $s=1$ the last index gives $\omega_{m-1} = B^{-1}$ exactly, so $1/\omega_{m-1} = B$. But $1/\omega$ is not a period — the period is $2\pi/\omega$, putting the real maximum at $2\pi B \approx 62832$. With modern $s=0$ it does not even reach $1/B$, since the last index is $m-1$. So the parameter sets the order of magnitude of the lowest angular frequency, not any literal period:

A longer period is not free context length. Raising base makes the mid- and high-index groups see a given distance as “closer” — group 32 at $\Delta p = 100$ rotates $3.16$ rad at base 1000, $1.00$ rad at base 10000, $0.32$ rad at base 100000. That is why base scaling shows up in long-context recipes. But a model has already fit one particular rotation geometry during training; changing $B$ at inference changes the phase at every position and the relative rotation in every attention score. Longer periods are necessary, not sufficient — the real recipes pair it with continued pre-training or a long-context adaptation stage.

max_period is not the number of diffusion steps. $t \in \{0,\ldots,999\}$ does not imply max_period = 1000. With dim=128, max_period=10000, group 63 gains $0.115$ rad across the entire schedule while group 0 gains $999$ rad — about 159 turns. Too large and the slow channels go dead (quantified below); too small and everything wraps, leaving no stable slow feature. Bigger is not better.

Engineering Notes

Implementation details that do not change the geometry above:

• Channel layout. Group $i$ may occupy channels $(i,\ m{+}i)$ (split-half) or the adjacent pair $(2i,\ 2i{+}1)$ (interleaved, which is what diffusers uses). Both work, but a checkpoint trained under one is scrambled by the other — this is why converting LLaMA weights to HF requires permuting q_proj and k_proj.
• Rescaling the coordinate ≠ changing the base. Rescaling $x \to sx$ multiplies every frequency by the same $s$ (a uniform stretch — this is what position interpolation does). Changing $B \to B^{\prime}$ scales group $i$ by $(B^{\prime}/B)^{-i/m}$, which depends on $i$: the fast group 0 is untouched, the slow high-index tail shifts most. Non-uniform.
• Nothing requires integers. $\theta_i(x) = x\omega_i$ is defined for any real $x$, which is why video DiTs can use fractional or normalized position grids, and why diffusion works with continuous $t$, $\sigma$, or $\log\sigma$. Two caveats: some kernels index a precomputed cos/sin cache by integer id and do require integers; and switching a schedule from $t \in [0,999]$ to $t \in [0,1]$ without touching the frequencies compresses every phase ~1000×, which is an easy bug to hit when porting between discrete and continuous-time formulations.
• embedding_dim. Extra width samples the same frequency range more densely; it does not extend it. Over $t \in [0,999]$ the slowest quarter of groups never reach 1 rad, so $\sin(t\omega_i) \approx t\omega_i$ and they become rescaled copies of $t$ — at dim 256 those 64 channels carry about 2 effective dimensions. By 99%-energy SVD rank: dim 128 → 57, 256 → 93, 512 → 147. The conventional 256 is not a necessity. What must match the schedule is max_period: feed $t \in [0,1]$ to the same table unscaled and the whole embedding collapses to rank 1, which is why AuraFlow and Qwen-Image pass scale=1000.
• rotary_dim — RoPE need not rotate the whole head. head_dim=128, rotary_dim=64 rotates 64 channels (32 groups) and passes the rest through, preserving purely content-based features.
• downscale_freq_shift and flip_sin_to_cos — DDPM leftovers. DDPM used $s = 1$ in $\exp\big(-\log B \cdot \frac{i}{m-s}\big)$ and emitted $[\sin, \cos]$. diffusers keeps both as signature defaults, but modern DiTs override them — 0.36 has 43 call sites at $s=0$ versus 2 at $s=1$, and HunyuanVideo, Qwen-Image, Sana and AuraFlow all pass flip_sin_to_cos=True, downscale_freq_shift=0. The trap is calling get_timestep_embedding directly and inheriting $s=1$, which drops the slowest frequencies by 13%. flip_sin_to_cos is pure ordering, but must match the weights.

Summary

Both constructions start from a scalar coordinate, assign each 2D group a different angular frequency, compute a phase, and take sine and cosine. Only the final step differs.

The current angle is $x\omega_i$, the period is $T_i = 2\pi/\omega_i$. Under the canonical dim=128, base=10000: 64 groups in geometric progression (ratio $\approx 0.866$), from $\omega_0 = 1$ down to $\omega_{63} \approx 1.15\times10^{-4}$ rad/step, periods spanning $6.283 \to 54410$. Equal position gaps give equal relative RoPE, the full encoding never exactly repeats, and raising base mainly lowers the already-slow tail — buying a longer positional scale, but not automatically better long-context behaviour.

The plotting and verification code for every figure and number above lives in demo.py.
